These Paddle Shift Units are of a single action momentary switched designed specifically for use as paddle shifters in a simulation racing set-up. Tension on these paddle switches is provided by an independant spring that can be changed as needed. A wide range of feel from very soft to very firm anctuation with different initial tension can be acheived through the use of different spring tensions, preloading, and travel limits (PS1003 series of parts). The PS1000 comes with a Medium Spring (PS1003_m) standard which provides excellent tactile feel with little finger fatigue.

These switches are made from lightweight 3K Woven Carbon Garphite plate which exhibit a very high strength to weight ratio. The micro switches employed for use in these switches are rated for 5 over million actualtions for a long life span and can be replaced easily. The design of these paddle shift units releives tension on the micro switch to prevent premature failure.

24.5mm - Base to top
30mm - Width
65.5mm - Rear most point of switch (includes overhang) to end of lever
Triangulated Mounting - 16.5 width x 17.5 mm point (hole center)
Actuation Tention - Spring (13 - 57 lb/inch options)
Actuation Release Tension - Preloading of spring
Actuation Travel - Limit Screw
US Produced Lightweight high strength 3K Carbon Graphite Plate
Specifically Engineered 3D Printed Internal Structure
2mm Hex Drive Screws
Ultra Micro SPDT Switch rated at over 5 million triggers
24ga Wire Bare Ends
Medium spring (PS1003_m)
Single switch unit complete -
(w/wire and mounting hardware)
1.0oz (28g) each
Single switch unit bare -
0.9oz (24g)
PS1002 series paddles (Any)
PS1003_s - Soft Spring Set
PS1003_h - Hard Spring Set
PS1003_eh - Extra Hard Spring Set
PS1003 - Preload & Limiter Kit

2 x Graphite Paddle Shift Switches with mounting hardware and bare wire ends

Further Instructions:
More detailed physical instructions are included in the Catalog and Instructions PDF for the Modular USB and SimuSERIES.
Please click here to download.

These paddles are designed to allow you to have full ability to activate the Paddle Switch units whether you prefer to drive with your hands at the 9/3 or 10/2 positions. The Mounting screws for the paddles are Countersunk and Button head screws placed for maximum hold with minimal intrusion making the paddles feel smooth without any uncomfortable protursions. The triangulated mounting pattern of the screws on the paddles reduces the chance that the paddles will shift during use allowing for confident use. In addition to the secure and comfortable feel the paddles are designed with the ability to have 10mm of width adjustment availible to use allowing you to locate the paddles in that perfect position for optimal feel in the heat of the drive. This paddle set is made out of high quality multi directional reinforced US produced M2.25 Carbon Fiber plate in a 3K weave pattern.

1 x Left Side Graphite Paddle
1 x Right Side Graphite Paddle
4 x M3x8 Flat Head Hex Screw
2 x M3x8 Button Head Hex Screw
6 x M3 Jam Nut

These paddles may be placed on the front or the rear of the switch lever to acheive optimal distance from the steering wheel. We suggest mounting the paddle so the screw heads are facing the dash in order to have a smooth surface for your fingers and maximum contact.

To adjust the paddles properly use the center button head screw to get the positioning where you would like it. Once found, tighten all of the screws to secure the paddle in place.

Further Instructions:
More detailed physical instructions are included in the Catalog and Instructions PDF for the Modular USB and SimuSERIES.
Please click here to download.

These paddles are designed for uniform feel with an extended range of activation around the wheel. The Mounting screws for the paddles are Countersunk and Button head screws placed for maximum hold with minimal intrusion making the paddles feel smooth without any uncomfortable protursions. The triangulated mounting pattern of the screws on the paddles reduces the chance that the paddles will shift during use allowing for confident use. In addition to the secure and comfortable feel the paddles are designed with the ability to have 10mm of width adjustment availible to use allowing you to locate the paddles in that perfect position for optimal feel in the heat of the drive. This paddle set is made out of high quality multi directional reinforced US produced M2.25 Carbon Fiber plate in a 3K weave pattern.

2 x Large Graphite Paddle
4 x M3x8 Flat Head Hex Screw
2 x M3x8 Button Head Hex Screw
6 x M3 Jam Nut

These paddles may be placed on the front or the rear of the switch lever to acheive optimal distance from the steering wheel. We suggest mounting the paddle so the screw heads are facing the dash in order to have a smooth surface for your fingers and maximum contact.

To adjust the paddles properly use the center button head screw to get the positioning where you would like it. Once found, tighten all of the screws to secure the paddle in place.

Further Instructions:
More detailed physical instructions are included in the Catalog and Instructions PDF for the Modular USB and SimuSERIES.
Please click here to download.

These paddles are the basic model allowing excellent fingertip control of the switches at the 9/3 position on the steering wheel. The Mounting screws for the paddles are Countersunk and Button head screws placed for maximum hold with minimal intrusion making the paddles feel smooth without any uncomfortable protursions. The triangulated mounting pattern of the screws on the paddles reduces the chance that the paddles will shift during use allowing for confident use. In addition to the secure and comfortable feel the paddles are designed with the ability to have 10mm of width adjustment availible to use allowing you to locate the paddles in that perfect position for optimal feel in the heat of the drive. This paddle set is made out of high quality multi directional reinforced US produced M2.25 Carbon Fiber plate in a 3K weave pattern.

2 x Small Graphite Paddle
4 x M3x8 Flat Head Hex Screw
2 x M3x8 Button Head Hex Screw
6 x M3 Jam Nut

These paddles may be placed on the front or the rear of the switch lever to acheive optimal distance from the steering wheel. We suggest mounting the paddle so the screw heads are facing the dash in order to have a smooth surface for your fingers and maximum contact.

To adjust the paddles properly use the center button head screw to get the positioning where you would like it. Once found, tighten all of the screws to secure the paddle in place.

Further Instructions:
More detailed physical instructions are included in the Catalog and Instructions PDF for the Modular USB and SimuSERIES.
Please click here to download.

These paddles are designed in the same basic format as the Large Paddle Set (PS1002_02) but are set up as half paddles in order for two Paddle Switches to be used next to each other for more control options. The Quad Paddles can also be used in a split offset configuration by running only the upper or lower paddles. The Mounting screws for the paddles are Countersunk and Button head screws placed for maximum hold with minimal intrusion making the paddles feel smooth without any uncomfortable protursions. The triangulated mounting pattern of the screws on the paddles reduces the chance that the paddles will shift during use allowing for confident use. In addition to the secure and comfortable feel the paddles are designed with the ability to have 10mm of width adjustment availible to use allowing you to locate the paddles in that perfect position for optimal feel in the heat of the drive. This paddle set is made out of high quality multi directional reinforced US produced M2.25 Carbon Fiber plate in a 3K weave pattern.

2 x Small Left Graphite Paddle
2 x Small Right Graphite Paddle
8 x M3x8 Flat Head Hex Screw
4 x M3x8 Button Head Hex Screw
12 x M3 Jam Nut

These paddles may be placed on the front or the rear of the switch lever to acheive optimal distance from the steering wheel. We suggest mounting the paddle so the screw heads are facing the dash in order to have a smooth surface for your fingers and maximum contact.

To adjust the paddles properly use the center button head screw to get the positioning where you would like it. Once found, tighten all of the screws to secure the paddle in place.

Further Instructions:
More detailed physical instructions are included in the Catalog and Instructions PDF for the Modular USB and SimuSERIES.
Please click here to download.

This paddle set is designed to be extremely narrow for small diameter formula style wheels. It is designed to replace the standard adjustible lever in the Switch, In doing so the adjustibility in the width is eliminated in favor of the compact nature of the design. The Paddle size falls a little between the Small and Large adjustible styles. This paddle set is made out of high quality multi directional reinforced US produced M3.0 Carbon Fiber plate in a 3K weave pattern.

2 x Narrow Graphite Lever Paddle

These paddles replace the existing M3.0 Adjustible lever in the switch and install in the same manner as indicated in the original assembly instructions.

Further Instructions:
More detailed physical instructions are included in the Catalog and Instructions PDF for the Modular USB and SimuSERIES.
Please click here to download.

The Soft Spring Set includes a pair of springs that are 35% softer in rate than the standard Medium spring set.

2 x Soft Springs for Paddle Switch

Replace the kit included springs directly. There are no changes to any preload or placement needed as the springs are of the same size dimensionally.

Further Instructions:
More detailed physical instructions are included in the Catalog and Instructions PDF for the Modular USB and SimuSERIES.
Please click here to download.

The Medium Spring Set includes a pair of springs that are the same rate as what is included with the PS1000 switch set.

2 x Medium Springs for Paddle Switch

Replace the kit included springs directly. There are no changes to any preload or placement needed as the springs are of the same size dimensionally.

Further Instructions:
More detailed physical instructions are included in the Catalog and Instructions PDF for the Modular USB and SimuSERIES.
Please click here to download.

The Hard Spring Set includes a pair of springs that are 75% harder in rate than the standard Medium spring set.

2 x Hard Springs for Paddle Switch

Replace the kit included springs directly. There are no changes to any preload or placement needed as the springs are of the same size dimensionally.

Further Instructions:
More detailed physical instructions are included in the Catalog and Instructions PDF for the Modular USB and SimuSERIES.
Please click here to download.

The Extra Hard Spring Set includes a pair of springs that are 185% harder in rate than the standard Medium spring set.

2 x Extra Hard Springs for Paddle Switch

Replace the kit included springs directly. There are no changes to any preload or placement needed as the springs are of the same size dimensionally.

Further Instructions:
More detailed physical instructions are included in the Catalog and Instructions PDF for the Modular USB and SimuSERIES.
Please click here to download.

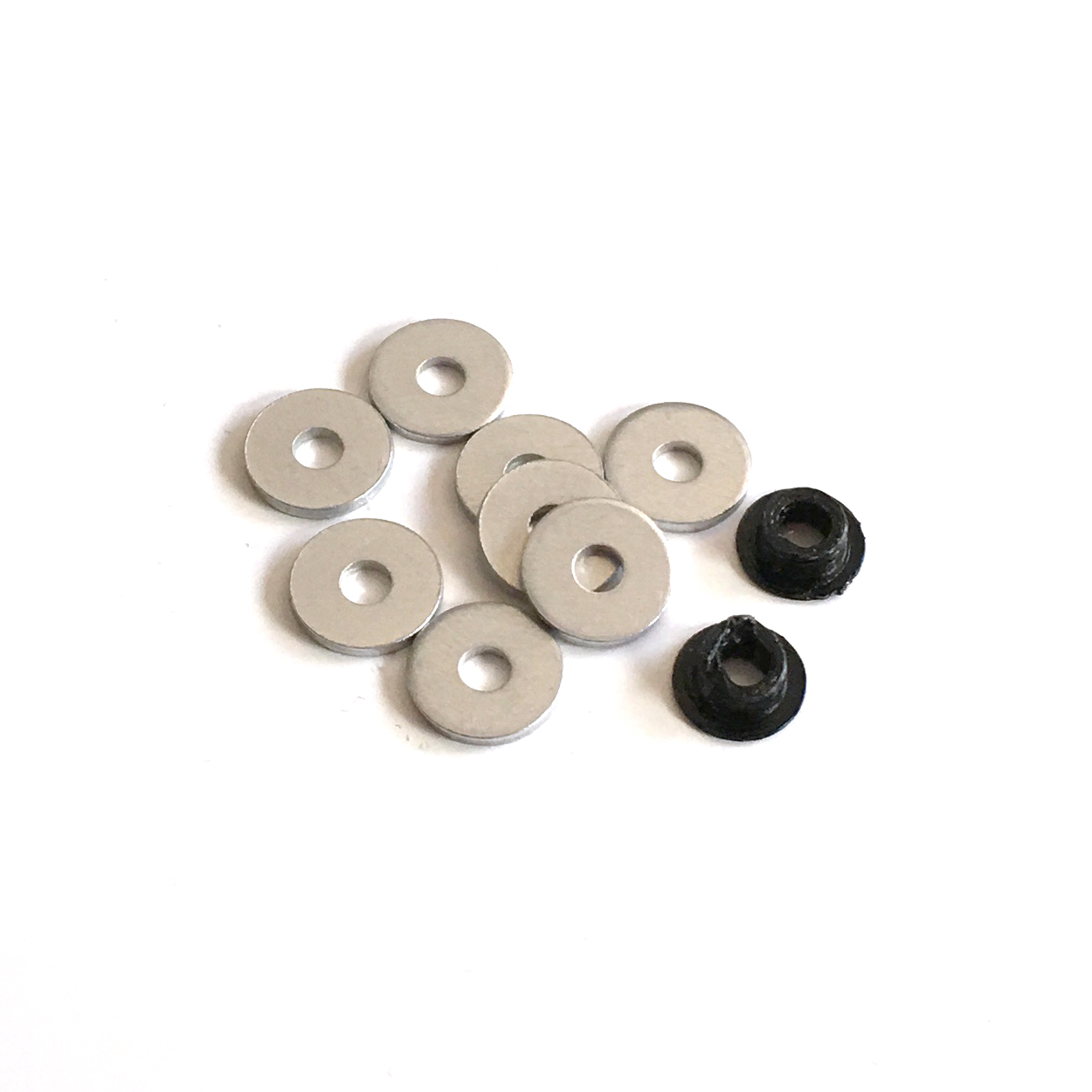

The preload spacer kit allows you to adjust the initial trigger feel of the Paddle Switch units by adding preload to the spring. When preload is added, resistance to initial motion is increased creating a firm paddle release without changing the rate and tension of the spring. This kit allows up to 4mm of preload to be added to each switch in the set. In addition this kit provides the screws and spacers to adjust the travel limit of the paddle when mounting to a variety of plates

You can fine tune the tactile feel of your paddle set through the use of different amounts of preload, spring weights, and travel.

8 x 1mm Lightweight Preload Washer
6 x 1mm Small Lightweight Limiting Washer
2 x .5mm Limiting Washer
2 x M3x16 Buttonhead Limiting Screw
2 x M3x20 Buttonhead Limiting Screw
2 x Spring Centering Bushing

The preload spacers are added below the spring mount bushing, around the travel limit screw. You can add as many spacers as you would like, however, at some point you will make the spring ineffective as it will limit the travel of the paddle. If you are adding significant pre-load to get the feel you want, you may actually acheive a better feel by moving to the next higher spring weight.

Note: Using preload gives a snappier feel to the paddles.

The limiting screws and spacers are to provide you with the ability to limit the travel securely on the paddles as opposed to the normal method of just backing out the screw. Designed to allow the seating of the limiting screws at anywhere from 13-17mm from the switch (full to minimum travel). You can use the small limiting washers between the screw and the Base of the switch to finetune the length in .5mm increments to finetimne the total switch travel

Further Instructions:
More detailed physical instructions are included in the Catalog and Instructions PDF for the Modular USB and SimuSERIES.
Please click here to download.

This Mounting plate is designed to allow easy mounting of our paddles to any steering wheel with a 70mm or 74mm PCD Steering wheel (Momo/Sparco 70mm PCD, Nardi/Personal 74mm PCD). Solid mounting locations of 10mm allow for infinate adjustment of the distance of the paddles from each other to fine tune positioning. This plate is made out of high quality multi directional reinforced US produced M3.0 Carbon Fiber plate in a 3K weave pattern. In order to increase the structural rigidity of the plate (especially when using higher tension springs) we have designed this plate to work with the PS1004_05 reinforcement kit.

The PS1004_01 plate is capable of being used on steering wheels from 280 - 320mm in Diameter though it is suggested that the PS1004_02 Paddle plate be used instead on this diameter steering wheel as the length of the mounting arms could interfear with usage. The plate length can be trimmed if needed without structural issue.

1x 280-380 Steering Wheel Mounting Plate

Mount the paddles as you would to the non-countersunk side of the mounting plate using M3 flathead screws. Mount each paddle in the same position on each end of the plate to allow for an even setting. The plate acts as a M3 spacer but you may add additional mounting plates or hub spacers to modify the positioning of the paddles relative the steering wheel rim.

Further Instructions:
More detailed physical instructions are included in the Catalog and Instructions PDF for the Modular USB and SimuSERIES.
Please click here to download.

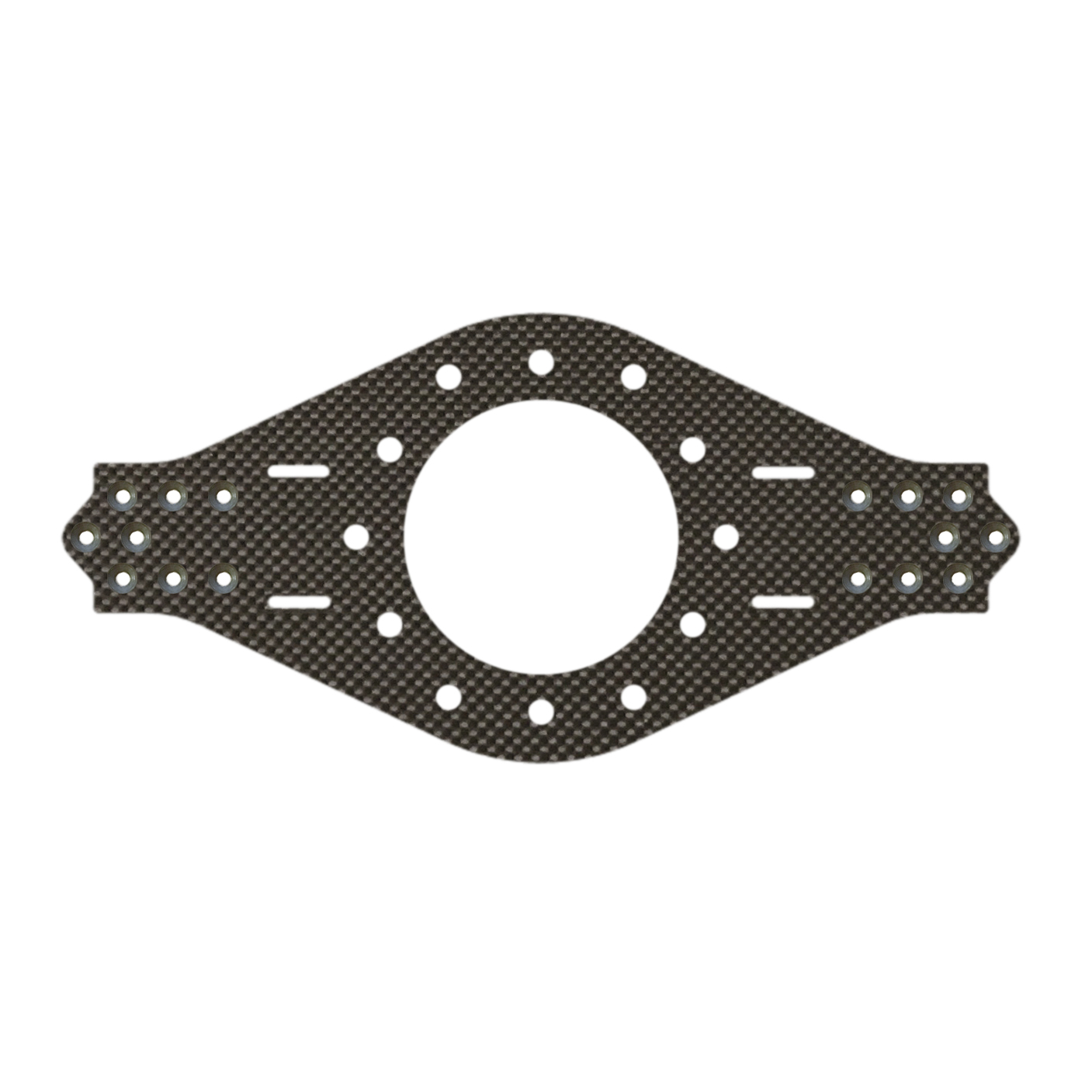

This Mounting plate is designed to allow easy mounting of our paddles to any steering wheel with a 70mm or 74mm PCD Steering wheel (Momo/Sparco 70mm PCD, Nardi/Personal 74mm PCD). Solid mounting locations of 10mm allow for infinate adjustment of the distance of the paddles from each other to fine tune positioning. This plate is made out of high quality multi directional reinforced US produced M3.0 Carbon Fiber plate in a 3K weave pattern. In order to increase the structural rigidity of the plate (especially when using higher tension springs) we have designed this plate to work with the PS1004_05 reinforcement kit.

1x 280-320 Steering Wheel Mounting Plate

Mount the paddles as you would to the non-countersunk side of the mounting plate using M3 flathead screws. Mount each paddle in the same position on each end of the plate to allow for an even setting. The plate acts as a M3 spacer but you may add additional mounting plates or hub spacers to modify the positioning of the paddles relative the steering wheel rim.

Further Instructions:
More detailed physical instructions are included in the Catalog and Instructions PDF for the Modular USB and SimuSERIES.
Please click here to download.

This Mounting plate is designed to allow easy mounting of four of our paddles (two on each side) to any steering wheel with a 70mm or 74mm PCD Steering wheel (Momo/Sparco 70mm PCD, Nardi/Personal 74mm PCD). Solid mounting locations of 10mm allow for infinate adjustment of the distance of the paddles from each other to fine tune positioning. This plate is made out of high quality multi directional reinforced US produced M3.0 Carbon Fiber plate in a 3K weave pattern. In order to increase the structural rigidity of the plate (especially when using higher tension springs) we have designed this plate to work with the PS1004_05 reinforcement kit.

1x 280-320 Quad Paddle Steering Wheel Mounting Plate

Mount the paddles as you would to the non-countersunk side of the mounting plate using M3 flathead screws. Mount each paddle in the same position on each end of the plate to allow for an even setting. The plate acts as a M3 spacer but you may add additional mounting plates or hub spacers to modify the positioning of the paddles relative the steering wheel rim.

Further Instructions:
More detailed physical instructions are included in the Catalog and Instructions PDF for the Modular USB and SimuSERIES.
Please click here to download.

This Mounting plate set is designed to adapt the use of the PS1000 Paddle Switches to any Fanatec wheel that uses the CSW Quick release mechanism Including the BMW GT Wheel and the Formula Wheel (the P1002_L_01 paddle is reccomended when mounting to the Formula Wheel). The plates offer both vertical height and width adjustments to allow you to position the paddles where you best feel they work for you. The 10mm width adlustment allows for infinate paddle positioning over a 20mm span on each side. The Vertical adjustment allows for centerline or upper offset positioning of the paddles as standard for Fanatec GT wheels. These plates are made out of high quality multi directional reinforced US produced M3.0 Carbon Fiber plate in a 3K weave pattern.

1x Fanatec Left Side Paddle Mounting Plate
1x Fanatec Right Side Paddle Mounting Plate
4x M5 Spacers for use with GT or F1 Mounting
2x Rail Spacer for use with GT Mounting
Electrical plug and shrink wrap for direct connection.
Hardware required for mounting.

Further Instructions:
More detailed physical instructions are included in the Catalog and Instructions PDF for the Modular USB and SimuSERIES.
Please click here to download.

This Mounting plate kit is designed to allow installation of the PS1000 Paddle switches to the your existing Accuforce button box. This kit uses all of the standard mounting hardware that is used to mount the stock Accuforce Paddles..

2x Accuforce Paddle Mounting Plate
Electrical plug and shrink wrap for direct connection.
Hardware required for mounting.

Further Instructions:
More detailed physical instructions are included in the Catalog and Instructions PDF for the Modular USB and SimuSERIES.
Please click here to download.
