The Penguinr/c P7500 Performance Chassis is designed to increase and improve the performance of your Xray M18 chassis. This is done through newly developed exclusive shock towers and the ability to give maximum placement opportunities for your electronics. The chassis is produced out of M1.5 Quasi Grade Graphite and includes a matching upper deck and motor mount.

Top Bottom
click on picture for larger view

The newly developed shock towers for the P7500/M18 provide the chassis with the means to accept additional suspension settings through the use of stiffer springs without the side effects posed when using the stock shock locations. The stock suspention locations and mounts are provided and retained for adjustment capability. These shock towers are made out of M3.0 Quasi Grade Graphite

Front Shock Tower Rear Shock Tower
click on picture for larger view

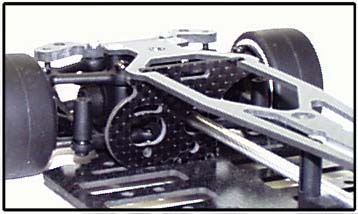

In addition to the above performance enhancements, the P7500 includes an integrated interlocking 180 motor mount. This motor mount can provide mounting of the standard 180size motor on either side of the car (left or right). The interlocking design of this motor mount secures its position between the upper and lower deck without the use of screws. The secured position of the motor mount improves the consistency of the gear mesh. This protects the gears from damage and improves efficiency under normal operating circumstances. In addition to the 180 motor mount we have several optional motor mounts available. These include a 300size side mount (P7504m300), 180 vertical mount (P7505m180),and 300 vertical mount (P7505m300). The vertical mounts allow further electronic placement options allowing for different saddle pack style configurations by opening up additional space on the lower chassis. For those who want maximum speed we also have an optional 400size motor upgrade kit which includes a different upper deck and motor mount.

Motor Motor Options
click on picture for larger view

The P7500 provides an almost unlimited array of methods for mounting the electroncs on the chassis. The P7500 is designed as a symmetrical chassis, this means that any component can be mounted on either the left or right side of the car including the Motor, Servo, Batteries, or anything else. The P7500 provides ten cell slots machined into the main lower deck. These slots accept KAN cells and can accomodate the original Xray mounting system or strapping tape for battery attachment. Optional are several different quick release battery mounting options. The P7509a is comprised of two 3 cell plates allowing for LTO saddle pack configurations. By using these plates you gain the ability to move the cells left and right on the chassis to further tune the weight balance of the car. The P7509b is a plate similar in use to the P7509a that allows use of 6-cell shotgun style packs on the car. This plate is semi-permanently attached down the center of the battery pack between the cells and mounts to the chassis via two screws. The last battery option is the P7509c this is a hybrid set-up consiting of one bullet style tray and one saddle. This set-up allows you to mount the bullet tray down the motor side while retaining a traditional LTO saddle on the servo side of the car. An additional option for those with larger electronics is the P7508 radio tray. This radio tray attaches to the side mount motor plates only (n/a p3508m400) and the upper deck to allow easier placement of electronics such as the reciever on the upper deck.

Saddle shotgun
click on picture for larger "on car" view

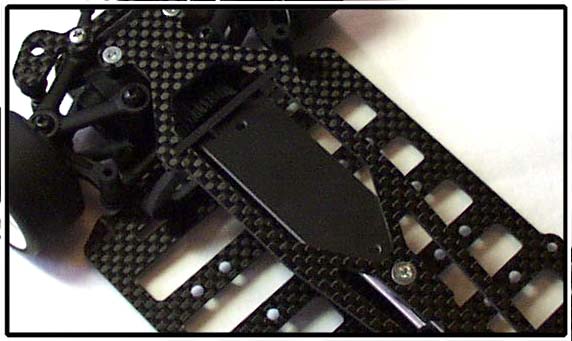

Hybrid Radio Tray
click on picture for larger "on car" view

The P7500 chassis kit includes Upper and Lower Chassis Plates made out of M1.5 Quasi-Grade woven carbon graphite plate, M2.0 180size Motor Plate, M3.0 Graphite Front and Rear Shock Towers, M3.0 Rear Stock Suspension Plates, Directions, and all hardware required to convert your Xray M18 to the P7500.


List Price: $56.99
Part Number: P7500


Purchase P7500


Affilated Product Annoucement:
Availible only through United R/C (www.unitedrc.com)



P7500urc Performance Chassis for the M18 -
Includes all of the standard features of the P7500 with a revised upperdeck and thier ADS Aluminum Vertical Motor Mount (180 or 300). For more product or ordering information on this affiliated product please contact United R/C by clicking on the above link.


P7500 Replacement Parts List:

P7501
P7502
P7504m180
P7506
P7507
P7500/M18 Main Chassis
P7500/M18 Upper Deck
P7500 180size Motor Mount
P7500/M18 Front Shock Tower
P7500/M18 Rear Shock Tower
$43.99
$16.99
$5.99
$8.99
$8.99
$
$
$
$
$

P7500 Option Parts List:

P7502s
P7503
P7504m300
P7505m180
P7505m300
P7508
P7508m400
P7509a
P7509b
P7509c
P7500/M18 Upper Deck (standard)
P7500 Ride Height Washers
P7500 300size Motor Mount
P7500 180size Vertical Motor Mount
P7500 300size Vertical Motor Mount
P7500 Radio Tray
P7500 400size Motor Upgrade Kit
P7500 6-cell Saddle Pack Plate Kit
P7500 6-cell Stick Pack Plate Kit
P7500 6-cell Hybrid Pack Plate Kit
$11.99
$3.99
$5.99
$5.99
$5.99
$3.99
$22.99
$8.99
$3.99
$8.99
$
$
$
$
$
$
$
$
$
$

Click on blue $ to add replacement parts to your PayPal web cart.


Click here to Download Direction Manual:


If you have any questions or comments regarding this chassis conversion please feel free to mail us at support@penguinrc.com
