The PSMOD_ONE USB wheelbox is designed to be a universal fit wheel box, We estimate that this GT Sizes wheelbox will work with 90% of the wheels that you can currently buy in the GT Size range of 300 - 350mm. The PSMOD_ONE includes all of the special features that we introduced on our PS_MOD27 wheelbox to allow for easy access to functions with a very clean and intuitive design. This fully enclosed wheelbox includes 4 buttons, 2 shifters and a 12-Position CommonCoder Dial with 2 paired buttons which allow for 12 different Encoder style inputs. All of these combined give a total of 30 independent assignable button inputs. The Face plate of the PSMOD_ONE is labeled with the most commonly used designations so alternative labels are not needed. Included with the wheelbox is a set of our acclaimed PS1000 Paddle Switches with offset asymmetric GT style paddles (PS1002_06). The PSMOD_ONElc is our low cost version of the PSMOD_ONE and is functionally identical. The differences are in the materials used in the construction of the box.


PSMOD_ONE shown with Chinese produced clone wheel.

Common Features: Mod_AF & MOD_AFlc
70mm PCD Mounting ONLY...
Penguin r/c designed 3D Printed Structural Enclosure.
Paddle outer edge width from 226 - 286mm w/ included paddles.
PS1002_06 Carbon Fiber Asymmetric GT paddles.
12 Position Common Coder w/ Penguin r/c Custom Aluminum Knob.

Positions - OFF, BRK B, TC, TC2, MAP, ABS, ARB F, ARB R, AUX, BB +/-, BB sel, BB pg

Printed Button Labels for common functions.
Direct Input Compatible Custom USB Interface.
Shielded coiled USB cord. (user replaceable if damaged)
Integrated Wheelbase Grounding to help alleviate possible EMI issues.
M5 x 50 Flat Head Screws provided for mounting.
(see notes: *)

MOD_ONE specific features:
High Quality Aerospace Grade M2.25 Carbon Fiber Front and Rear Plates.
PS1000 Graphite Paddle Shift Units.
6 Aluminum Surround Buttons.
Color Accent on Aluminum CommonCoder Knob

MOD_ONElc specific features:
M2.0 Black G10 Fiberglass Front and Rear Plates.
PS1000lc Paddle Shift Units.
6 Independent Plastic Surround Buttons.

Needed Parts:
Steering Wheel - Just about any 300 - 350mm diameter wheel (see notes: **)
USB Extension Cable (see notes: ***)

Notes:
(*) Hardware provided should work for most wheel mounting. Different length long screws and/or a spacer such as the PSW_S may be needed for blind hole quick releases or different offset steering wheels.

(**) The PSMOD_ONE is designed to work with a wide variety of wheels, If you have questions about your wheel choice working with the PSMOD_ONE please email us to ask.

(***) The provided USB Cord is long enough to reach your dash with allowable stretch to not be damaged during normal wheel rotation. More than likely a USB Extension cable will be needed to properly retain this aspect. We offer the dash mount extension PSW_USBe as a solution for this need.

Wheel Mounting:
The PSMOD_ONE MUST be used with 70mm PCD Wheels. Included are (6) M5.0 x 50 Flat Head screws. Depending on your mounting you may a spacer such as the PSW_S to securely mount the wheel.

Computer Connection:
Connect the USB cord from the wheel to your computer, Windows will automatically install the Wheel as Penguin r/c PSMOD_ONE.
Connection to your computer may require a USB Extension Cable. We offer a Dash Mount USB Extension kit for this purpose. (PSUSB_e)

Paddle Adjustments:
To adjust the Paddle Switch mounting width you will need a TORX T-8 driver to remove the 4 screws outer screws on the wheelbox. After you may remove the rear plate being careful of the Paddle connection wires. Once open you can remove the 4 screws holding the Paddle Mounting plate to the mount on the PSMOD_ONE back plate, adjust, and then reinstall.
Please see the Transmission Hardware Instructions for the PS1000 Shift units to learn about all of the adjustments available.
Please click here to download.

NOTE: DO NOT over tighten the screws for the back plate OR paddle mounting as you may strip the plastic housing. Turn only so that there is a snug resistance and no play.

Further Instructions:
More detailed physical instructions are included in the Catalog and Instructions PDF for the USB Wheel Options.
Please click here to download.

Note: Maximum paddle width adjustment on the PSMOD_ONE (outer edge) with the included paddle design is 286mm. Wheels larger than 350mm may have the paddles fall in a more inboard position from the outer wheel and may have longer button actuation distances.

The PSMOD_AF USB wheelbox was created for use with the Accuforce Formula Wheel. The unique shaping of this wheel requires a special format wheelbox in order to offer optimal control. The PSMOD_AF is designed to take allow as many options to drivers when driving and includes special features to allow easy access to these functions with minimal thought and direct access. This fully enclosed wheelbox includes 4 buttons, 2 shifters and a 12-Position CommonCoder Dial with 2 paired buttons which allow for 12 different Encoder style inputs. All of these combined give a total of 30 independent assignable button inputs. The Face plate of the PSMOD_AF is labeled with the most commonly used designations so alternative labels are not needed. Included with the wheelbox is a set of our acclaimed PS1000s Paddle Switches with offset asymmetric Formula style paddles (PS1002_05). The PSMOD_AFlc is our low cost version of the PSMOD_AF and is functionally identical. The differences are in the materials used in the construction of the box.



PSMOD_AF shown with Accuforce Formula wheel.

Common Features: Mod_AF & MOD_AFlc
70mm PCD Mounting ONLY...
Penguin r/c designed 3D Printed Structural Enclosure.
Paddle outer edge width from 200 - 260mm w/ included paddles.
PS1002_05 Carbon Fiber Asymmetric GT paddles.
12 Position Common Coder w/ Penguin r/c Custom Aluminum Knob.

Positions - OFF, BRK B, TC, TC2, MAP, ABS, ARB F, ARB R, AUX, BB +/-, BB sel, BB pg

Printed Button Labels for common functions.
Direct Input Compatible Custom USB Interface.
Shielded coiled USB cord. (user replaceable if damaged)
Integrated Wheelbase Grounding to help alleviate possible EMI issues.
M5 x 50 Flat Head Screws provided for mounting.
PSW_s 8mm Spacer for use with Accuforce or other blind QR
(see notes: *)

MOD_AF specific features:
High Quality Aerospace Grade M2.25 Carbon Fiber Front and Rear Plates.
PS1000s Graphite Paddle Shift Units.
4 Aluminum Surround Buttons.

MOD_AFlc specific features:
M2.0 Black G10 Fiberglass Front and Rear Plates.
PS1000slc Paddle Shift Units.
4 Independent Plastic Surround Buttons.

Needed Parts:
Steering Wheel - Accuforce Formula Wheel (see notes: **)
USB Extension Cable (see notes: ***)

Notes:
(*) Hardware provided should work for most wheel mounting. Different length long screws may be needed for blind hole quick releases or different offset steering wheels.

(**) The PSMOD_AF may work well with some other 70mm PCD wheels as well, If you have questions about your wheel choice working with the PSMOD_AF please email us to ask.

(***) The provided USB Cord is long enough to reach your dash with allowable stretch to not be damaged during normal wheel rotation. More than likely a USB Extension cable will be needed to properly retain this aspect. We offer the dash mount extension PSW_USBe as a solution for this need.

Wheel Mounting:
The PSMOD_AF MUST be used with 70mm PCD Wheels. Included are (6) M5.0 x 50 Flat Head screws. Depending on your mounting you may need a spacer such as the PSW_s (provided) to securely mount the wheel.

Computer Connection:
Connect the USB cord from the wheel to your computer, Windows will automatically install the Wheel as Penguin r/c PSMOD_AF.
Connection to your computer may require a USB Extension Cable. We offer a Dash Mount USB Extension kit for this purpose. (PSUSB_e)

Paddle Adjustments:
To adjust the Paddle Switch mounting width you will need a TORX T-8 driver to remove the 4 screws outer screws on the wheelbox. After you may remove the rear plate being careful of the Paddle connection wires. Once open you can remove the 4 screws holding the Paddle Mounting plate to the mount on the PSMOD_AF back plate, adjust, and then reinstall.
Please see the Transmission Hardware Instructions for the PS1000s Shift units to learn about all of the adjustments available.
Please click here to download.

NOTE: DO NOT over tighten the screws for the back plate OR paddle mounting as you may strip the plastic housing. Turn only so that there is a snug resistance and no play.

Further Instructions:
More detailed physical instructions are included in the Catalog and Instructions PDF for the USB Wheel Options.
Please click here to download.

Note: Maximum paddle width adjustment on the PSMOD_AF (outer edge) with the included paddle design is 260mm. Wheels larger than 330mm may have the paddles fall in a more inboard position from the outer wheel and may have longer button actuation distances.

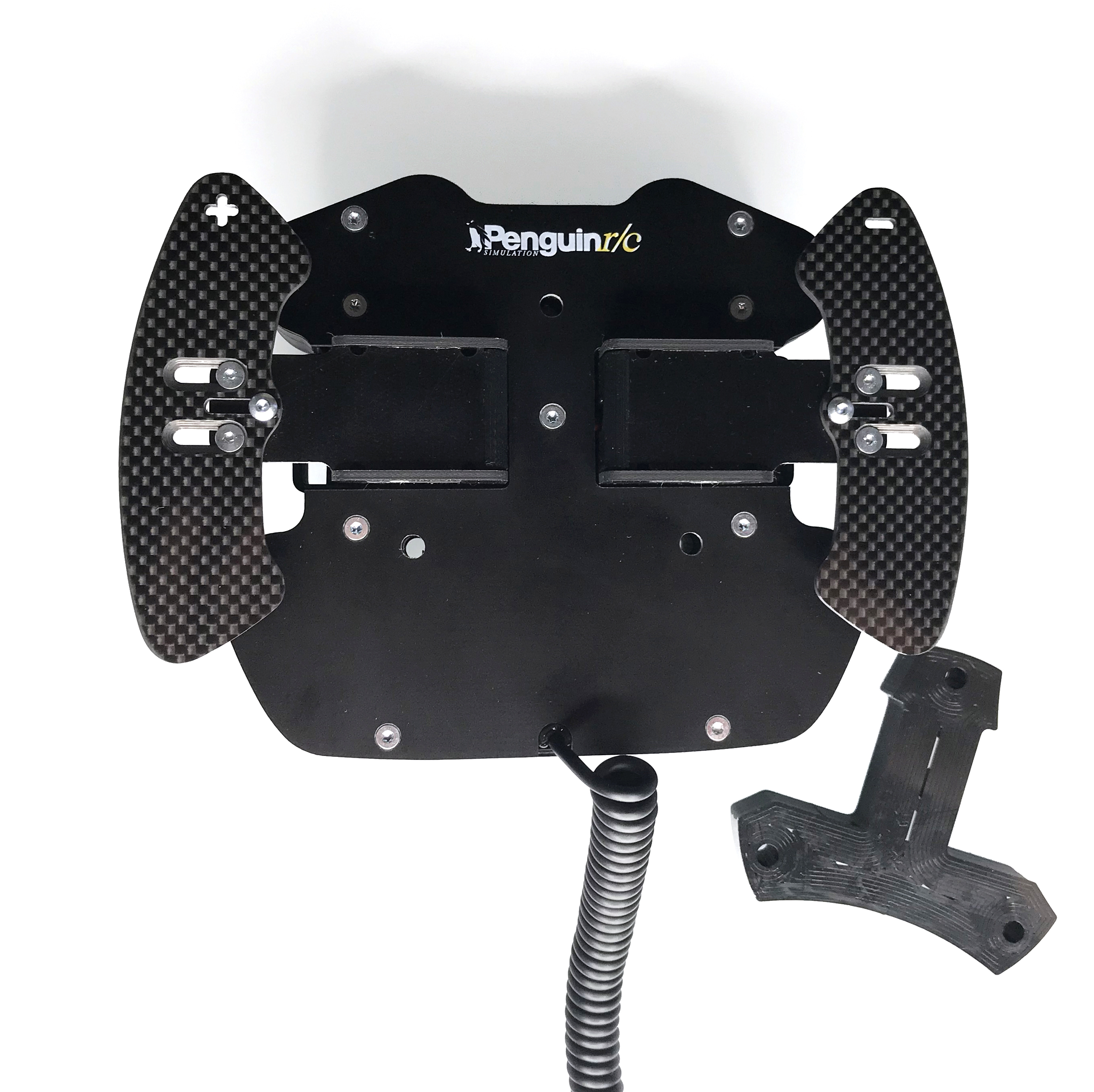

The PSMOD_27 USB wheelbox was created for use with the popular MOMO MOD27 series of wheels. This series of wheels comes in 270mm, 290mm, and 270mm Open Top diameters which make them an optimal choice for use with many different vehicle types from GT cars to Formula type. The PSMOD_27 is designed to take full advantage of the many options available to drivers when driving a sim and includes special features to allow easy access to these functions. This fully enclosed wheelbox includes 4 buttons, 2 shifters and a 12-Position CommonCoder Dial with 2 paired buttons which allow for 12 different Encoder style inputs. All of these combined give a total of 30 independent assignable button inputs. The Face plate of the PSMOD_27 is labeled with the most commonly used designations so alternative labels are not needed. Included with the wheelbox is a set of our acclaimed PS1000 Paddle Switches with offset asymmetric GT style paddles (PS1002_06). The PSMOD_27lc is our low cost version of the PSMOD_27 and is functionally identical. The differences are in the materials used in the construction of the box.


PSMOD_27 shown with MOMO Mod.27 290mm wheel.

Common Features: Mod_27 &MOD_27lc
70mm PCD Mounting ONLY...
PSPCD_50 adaptor availible for using 50.2mm PCD Wheels.
Penguin r/c designed 3D Printed Structural Enclosure.
Paddle outer edge width from 155 - 235mm w/ included paddles.
PS1002_06 Carbon Fiber Asymmetric GT paddles.
12 Position Common Coder w/ Penguin r/c Custom Aluminum Knob.

Positions - OFF, TC, TC2, BRK B, ABS, BB pg, BB sel, BB +/-, AUX, MAP, ARB R, ARB F

Printed Button Labels for common functions.
Direct Input Compatible Custom USB Interface.
Shielded coiled USB cord. (user replaceable if damaged)
Integrated Wheelbase Grounding to help alleviate possible EMI issues.
M5 x 12 Cap Head & M5 x 65 Cap Head Screws provided for mounting.
(see notes: *)
3D Printed Paddle Clearance Spacer.

MOD_27 specific features:
High Quality Aerospace Grade M2.25 Carbon Fiber Front and Rear Plates.
PS1000 Graphite Paddle Shift Units.
6 Independent Aluminum Surround Buttons.
Color Accented Common Coder Knob

MOD_27lc specific features:
M2.0 Black G10 Fiberglass Front and Rear Plates.
PS1000lc Paddle Shift Units.
6 Independent Plastic Surround Buttons.

Needed Parts:
Steering Wheel - any MOMO MOD27 wheel drilled to 70mm PCD (see notes: **)
USB Extension Cable (see notes: ***)

Notes:
(*) Hardware provided should work for most wheel mounting. Different length long screws and/or a spacer such as the PSW_S may be needed for blind hole quick releases or different offset steering wheels. The PSMOD_27 uses 3 of the 6 bolts for major mounting to the wheelbase, the other 3 attach the Wheel to the box.

(**) The PSMOD_27 may work well with some other 70mm PCD wheels as well, If you have questions about your wheel choice working with the PSMOD_27 please email us to ask.

(***) The provided USB Cord is long enough to reach your dash with allowable stretch to not be damaged during normal wheel rotation. More than likely a USB Extension cable will be needed to properly retain this aspect. We offer the dash mount extension PSW_USBe as a solution for this need.

Wheel Mounting:
The PSMOD_27 MUST be used with 70mm PCD Wheels. Included are (3) M5.0 x 12 Cap Head screws and (3) M5.0 x 65 Cap Head screws. Depending on your mounting you may a spacer such as the PSW_S to securely mount the wheel.

Computer Connection:
Connect the USB cord from the wheel to your computer, Windows will automatically install the Wheel as Penguin r/c PSMOD_27.
Connection to your computer may require a USB Extension Cable. We offer a Dash Mount USB Extension kit for this purpose. (PSUSB_e)

Paddle Adjustments:
To adjust the Paddle Switch mounting width you will need a TORX T-8 driver to remove the 4 screws outer screws on the wheelbox. After you may remove the rear plate being careful of the Paddle connection wires. Once open you can remove the 4 screws holding the Paddle Mounting plate to the mount on the PSMOD_27 back plate, adjust, and then reinstall.
Please see the Transmission Hardware Instructions for the PS1000 Shift units to learn about all of the adjustments available.
Please click here to download.

NOTE: DO NOT over tighten the screws for the back plate OR paddle mounting as you may strip the plastic housing. Turn only so that there is a snug resistance and no play.

Further Instructions:
More detailed physical instructions are included in the Catalog and Instructions PDF for the USB Wheel Options.
Please click here to download.

Note: Maximum paddle width adjustment on the PSMOD_27 (outer edge) with the included paddle design is 235mm. Wheels larger than 300mm may have the paddles fall in a more inboard position from the outer wheel and may have longer button actuation distances.

This PSPGT3 wheel started life as a commission project for an owner of a Porsche GT3 RS who wanted a wheel for his simulator that would as closely match the the actual Porsche GT3 CUP wheel that is available through Porsche Racing, with increased functionality and of course a much lower Price tag than the $2000+ costs of the original. The Design was painstakingly revised to work with the wheel that we found as the closest in visual to the actual Sabelt Porsche GT3 CUP steering wheel. This wheel was the Sparco L360 Suede (BTW the PSPGT3 doesn't look at all bad with the original Sabelt wheel as well). There were design elements that had to be adjusted to accommodate the different design of the L360 but through it all the design was tweaked to give the wheel the same personality as the original. We chose the Graphite to be used to match the twill style used on the original as well as designed the paddles to visually represent the originals as closely as possible, From the Black Aluminum Surround buttons to the Custom Printed lettering on the wheel using a recreated typeface similar to what was used on the original wheel, everything was done to meet or exceed the quality and visual appeal of the original.

One of the goals of the PSPGT3 design was to extend the use of the wheel for simulation. The original wheel had 8 buttons and the paddle shift units, but for simulation we need more. So we went to work on deciding what would be optimal. By replacing three of the buttons with encoders we were able to allow for in car adjustments that normally wouldn't have been possible. The addition of a single button used as a SHIFT register we were able to double the use of every encoder and button to give an unprecedented number of functions to the wheel without compromising the visual appeal that the Porsche GT3 Cup wheel offers.

Penguin r/c Custom designed 3D Printed hub and paddle mount.
High Quality Aerospace Grade M2.5 Twill. Carbon Fiber.
Special PS1000 Graphite Paddle Shift Units.
Matching Porsche GT3 style Carbon Fiber paddles.
60mm Infinite Paddle & Switch width adjustment.
Paddle outer edge width from 235 - 295mm w/ included paddles.
14 Independent Aluminum Surround and Encoder Buttons. (7 switched)
6 Independent 2-way Digital Encoders. (3 switched)
Factory style Printed Button Labels and Emblem.
(common functions for the the Porsche GT3 CUP and RSR printed.)
Direct Input Compatible Custom USB Interface.
Shielded coiled USB cord. (user replaceable if damaged)
M5 x 50 Flat Head Screws provided for mounting (see notes: *)

Needed Parts:
Steering Wheel - Sparco L360 Recommended (see notes: **)
USB Extension Cable (see notes: ***)

Notes:
(*) Hardware provided should work for most wheel mounting, M5.0 Nuts or Lock Nuts may be needed with pass through style mounting. Different length screws and/or a spacer such as the PSW_S may be needed for blind hole quick releases or different offset steering wheels.

(**) The PSPGT3 wheel was designed for optimal use with the Sparco L360 or Sabelt Porsche CUP Steering wheels. Other steering wheel models around 320mm in diameter with perpendicular cross spoke designs should work as well. If you have questions about your wheel choice working with the PSPGT3 please email us to ask.

(***) The provided USB Cord is long enough to reach your dash with allowable stretch to not be damaged during normal wheel rotation. More than likely a USB Extension cable will be needed to properly retain this aspect. We offer the dash mount extension PSW_USBe as a solution for this need.

Wheel Mounting:
The PSPGT3 wheel can be used with 70mm or 72mm PCD Wheels. Included are (6) M5.0 x 50 Flat Head screws. Depending on your mounting you may need M5.0 Nuts (or) Lock Nuts, different length screws, or a spacer such as the PSW_S to securely mount the wheel.

Computer Connection:
Connect the USB cord from the wheel to your computer, Windows will automatically install the Wheel as Penguin r/c PSPGT3.
Connection to your computer may require a USB Extension Cable. We offer a Dash Mount USB Extension kit for this purpose. (PSUSB_e)

Paddle Adjustments:
To adjust the Paddle Switch mounting width you will need a TORX T-8 driver to remove the 4 screws holding the Paddle Mounting plate, adjust, and then reinstall.
Please see the Transmission Hardware Instructions for the PS1000 Shift units to learn about all of the adjustments available.
Please click here to download.

NOTE: DO NOT over tighten the screws for the back plate OR paddle mounting as you may strip the plastic housing. Turn only so that there is a snug resistance and no play.

Further Instructions:
More detailed physical instructions are included in the Catalog and Instructions PDF for the USB Wheel Options.
Please click here to download.

Note: Maximum paddle width adjustment on the PSPGT3 (outer edge) with the included paddle design is 295mm. Some tight fit issues may be able to be solved by placing a PSW_S spacer between the wheel and wheelbox.

This particular button box was designed from the ground up for Virtual Reality running. Different encoders and switches were used based on the feel that they provided in a blind environment so that knowing what was being used at any given time would be understood even for someone using the wheel for the first time. The wheel that this box was designed around was a OMP Super Quadro 320mm. The estimated Price provided assumes all new parts being used of the same type as the original build. This box was actually built using some parts that the purchaser already had.

Penguin r/c Custom designed 3D Printed Housing
Black FR4 Front and Back Plates
3x Bodnar Dual Concentric Encoders
2x Bodnar Knitter Switches
3x Bodnar Momentary Toggle Switches
5x Standard Dome Momentary Buttons
1x Bodnar HID Interface Board and Matrix Board
Fully Shielded Custom USB Cabling with Mountable Connection Box
Penguin r/c PS1000lc Paddle Shifters (low cost)
Penguin r/c PS1002_2 Large Paddle Set

OMP 320mm Super Quadro Wheel @ $250.00
Leo Bodnar Special Parts @ $205.00
Custom Button Box w/paddles and Labor @ $400.00

Total cost estimate = $855.00

The PSW_S is an 8mm wheel spacer for use with either M70 or M72 PCD wheels. The spacer can be used to allow for additional clearance at the back of a wheel plate or for additional button clearance when placed between the wheel box and the steering wheel. In some cases this spacer plate will allow you to not have to purchase different bolts for use with some blind hole quick releases such as the Accuforce or NRG sylte quick releases.

Rear Mount:
Place the PSW_S behind the wheelbox and any functional spacers for that wheel box. Use the mounting bolts provided for your wheel through the spacer to allow for more clearance beind the wheel box. Multiple spacers can be used if needed. (longer bolts may be required)

Front Mount:
Place the PSW_S between the wheelbox and steering wheel. This position will move the wheel box back slightly from the wheel and will provide additional clearance for buttons that reside close to the wheel. The use of the PSW_S in this manner can also allow certain wheels that will not normally work with a particular wheelbox to work, however, doing so could reduce the wheel box functionality if the wheel itself covers some controls.

The PSPCD_50 PCD adaptor was designed to allow the use of a 50.2mm PCD wheel on a 70mm PCD wheelbox or mounting. The 9mm thick plate is designed to be as thin as possible to be used surface mount to the front of a 70mm PCD unit. This mounting method allows for quick and easy conversion of wheel PCD.

70 - 50.2 PCD Adaptor Plate
3x M5x12 Flat Head Screw
3x M5 Nut

Place the three M5 Nuts into the corresponding locations on the back of the Adaptor Plate. Install the PSPCD_50 plate to your system or wheel box as you would your normal wheel taking note of the pattern for the 50.2mm PCD to match the orientation of the wheel that you are going to use. Once the adaptor plate is securely installed you can attach your wheel to the plate using the three provided M5x12 flat head bolts.
